Staple Fibre

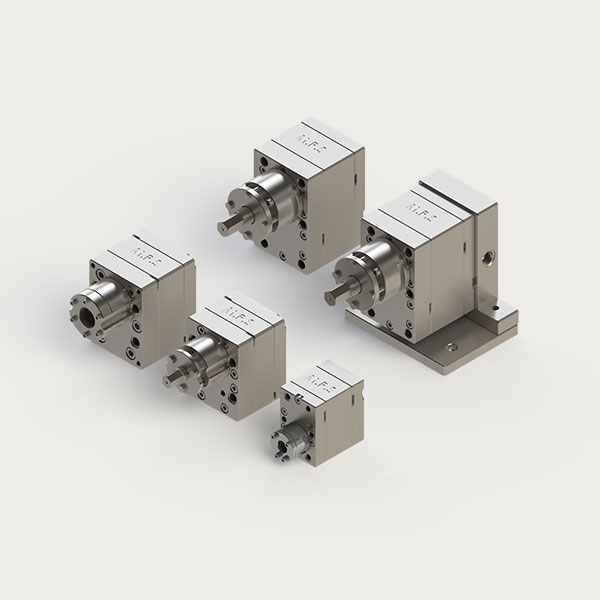

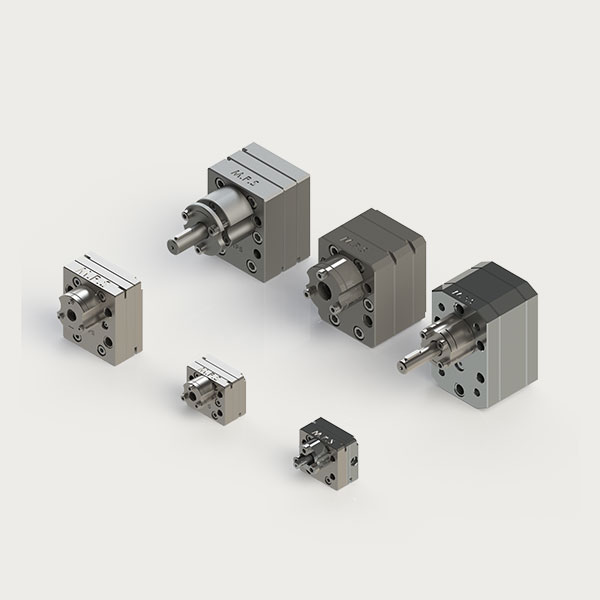

Our Pumps are designed and manufactured for High Accuracy and Long Life, resulting in very low Denier Variations for Longer Periods of time.

Our USP’s:

  • Design – We are able to provide the right design for appropriate application with Proven and Validated Pumps. All parts are interchangeable.
  • Manufacturing – We are able to achieve close tolerances and Geometries repeatedly as required by designs to achieve Accuracies and Long Life.  All parts are manufactured as per AS9100 standards. All pumps are tested and certified.
  •  Material Selection – We choose the material based on the application for Increased Wear and Corrosion Resistance Properties.
  • Heat Treatment – Specialized Heat Treatment Processes for Long Life/ Wear Resistance.
    We also provide Speciality Coatings and Sub Zero Treatments for Critical Applications.
Categories: ,

Description

Industries we Cater:

Polyester Polypropylene Nylon
Polyamide Spandex

Technical Specifications:

Properties Description
Design Varieties Single Inlet & Single Outlet / Multiple Inlet & Multiple Outlets
Capacity Range 8 to 150cc/rev/stream (Application Dependant)
Mounting Pivot / Foot / Block
Viscosity Up to 10,000 cP
Temperature Up to 350ᵒ C / Up to 500ᵒ C for Burnout
Pressure Up to 400 Bar (differential)
Material High Temperature and Wear Resistant Steel – High-Speed Tool Steel, Alloy Steel
Speed Up to 60 RPM, Application dependent
Treatments & Coatings Vacuum Hardening / Sub Zero Treatments / Nitriding / Special Suface Treatments
