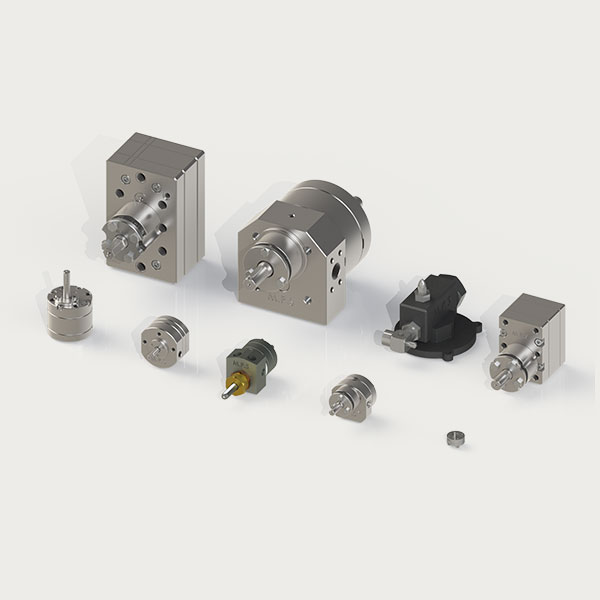

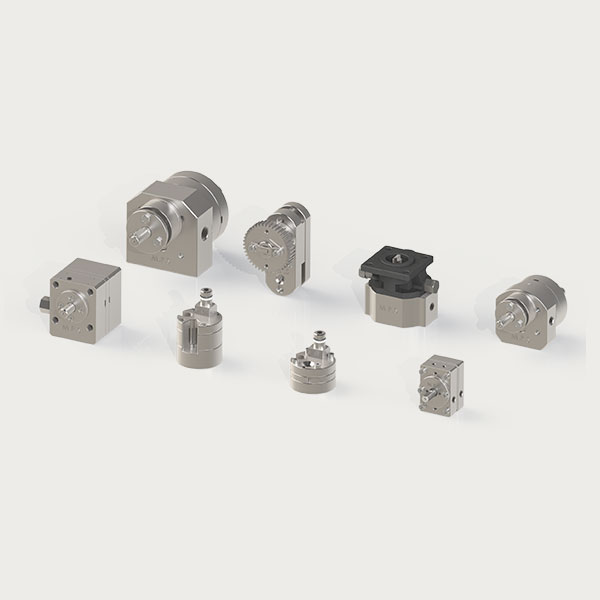

Paint Metering Pumps

Our Pumps are designed and manufactured for High Accuracy and Long Life, resulting in very low Discharge Variations for Longer Periods of time. We offer Gear Pumps to wide variety of Industrial Applications, for Precision Dosing / Metering. We also offer our products for Fluid Transfer, Feed, Circulation, Lubrication and Pressurisation Applications. We also undertake Contract Manufacturing of Gear Pumps for OEM’s.

Our USP’s

  • Design – We can provide right design for appropriate application with Proven and Validated Pumps. We use modern software for Designing the pumps. We extensively test and validate pumps in-house using Analysis and CFD methods, thereby making our pumps more reliable.
  • Manufacturing – We can achieve close tolerances and Geometries repeatedly as required by designs to achieve Accuracies and Long Life. All parts are manufactured as per AS9100 standards. All pumps are tested and certified.
  • Material Selection – We choose the material based on the application for Increased Wear and Corrosion Resistance Properties.
  • Heat Treatment – Specialized Heat Treatment Processes for Long Life/ Wear Resistance. We also provide Speciality Coatings and Sub-Zero Treatments for Critical Applications.
Category:

Description

Types of Application:

Dispensing
Industries we Cater:
Automobile Robotic Painting Other Paint Applications
Technical Specifications:

Properties Description
Design Varieties Single Inlet & Single Outlet / Multiple Inlet & Multiple Outlets
Capacity Range 0.3 to 150cc/rev/stream (Application Dependant)
Mounting Pivot / Foot / Block / Application Dependant
Viscosity Upto 50 cP
Temperature Up to 350ᵒ C and Depending on Application
Pressure Up to 400 Bar (differential)
Material High Grade Alloy Steel, Stellite, Tool Steel, depending on application
Speed Upto 60 RPM, Application dependent
Treatments & Coatings Vacuum Hardening / Nitriding / Special Suface Treatments / Coatings
