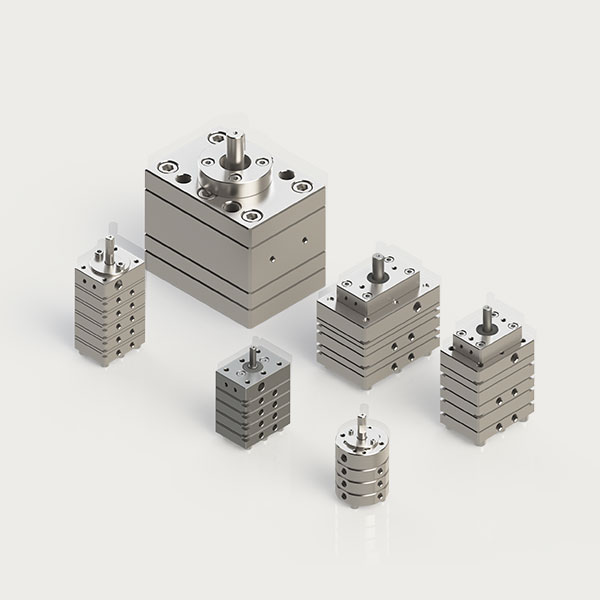

Spin Finish Pumps

Our Pumps are designed and manufactured for High Accuracy, Long Life, resulting in very low Discharge Variations for Longer Periods of time.

Our USP’s:

  • Design – We are able to provide the right design for appropriate application with Proven and Validated Pumps. All parts are interchangable.
  • Manufacturing – We are able to achieve close tolerances and Geometries repeatedly as required by designs to achieve Accuracies and Long Life.  All parts are manufactured as per AS9100 standards. All pumps are tested and certified.
  • Material Selection – We choose the material based on the application for Increased Wear and Corrosion Resistance Properties
  • Heat Treatment – Specialized Heat Treatment Processes for Long Life/ Wear Resistance.
    We also provide Speciality Coatings for Critical Applications.
Category:

Description

Industries we Cater:

Viscose Carbon Fibre Tyre Cord
Acetate Aramid Polyurethane
Acrylic Lyocell Spandex
Polyester Polypropylene Nylon
Polyamide

Technical Specifications:

Properties Description
Design Varieties Single Inlet & Single Outlet / Multiple Inlet & Multiple Outlets
Capacity Range 0.05 to 50cc/rev/stream (Application Dependant)
Mounting Foot / Block Mounting
Viscosity Up to 1 cP
Temperature Up to 150ᵒ C
Pressure Up to 10 Bar (differential)
Material Corrosion and Wear Resistance – Alloy Steel, Stellite, Tool Steel, depending on the application
Speed Up to 60 RPM, Application dependent
Treatments & Coatings Vacuum Hardening / Sub Zero Treatments / Nitriding / Special Surface Treatments
